Read Cohen Sutherland line clipping algorithm in Python, Liang Barsky line clipping algorithm in Python, and Weiler Atherton Polygon Clipping Algorithm in Python.
Code:
import PIL.ImageDraw as ID, PIL.Image as Image
import time
# Requirement
# pip install pillow
# im will show the overlapped between lines
# im1 will show the clipped line
im = Image.new("RGB", (640, 480))
im1 = Image.new("RGB", (640, 480))
draw2 = ID.Draw(im1)
draw = ID.Draw(im)
draw.polygon((200, 200, 400, 200, 400, 300, 200, 300), outline=255)
draw2.polygon((200, 200, 400, 200, 400, 300, 200, 300), outline=255)
p1 = (400.0, 300.0)
p4 = (200.0, 200.0)
def computeCode(x, y):
code = 0
if x < p4[0]:
code = code | 1
elif x > p1[0]:
code = code | 2
if y < p4[1]:
code = code | 4
elif y > p1[1]:
code = code | 8
return code
def lineClip(x1, y1, x2, y2):
code1 = computeCode(x1, y1)
code2 = computeCode(x2, y2)
accept = False
while True:
if code1 == 0 and code2 == 0:
accept = True
break
elif (code1 & code2) != 0:
break;
else:
x = 1.0
y = 1.0
if code1 != 0:
code_out = code1
else:
code_out = code2
if code_out & 8:
x = x1 + (x2 - x1) * (p1[1] - y1) / (y2 - y1)
y = p1[1]
elif code_out & 4:
x = x1 + (x2 - x1) * (p4[1] - y1) / (y2 - y1)
y = p4[1]
elif code_out & 2:
y = y1 + (y2 - y1) * (p1[0] - x1) / (x2 - x1)
x = p1[0]
elif code_out & 1:
y = y1 + (y2 - y1) * (p4[0] - x1) / (x2 - x1)
x = p4[0]
if code_out == code1:
x1 = x
y1 = y
code1 = computeCode(x1, y1)
else:
x2 = x
y2 = y
code2 = computeCode(x2, y2)
if accept:
a = []
p1 = (x1, y1)
p2 = (x2, y2)
a.append(p1)
a.append(p2)
draw.line((x1, y1, x2, y2), fill=(0, 0, 255))
return a
else:
a = [(None, None), (None, None)]
return a
def findNext(i, n, points):
for j in range(i + 1, n):
if (points[j][0] != None):
return j
def polygonClip(n, points):
count = 0
flag = 0
final = list()
if (computeCode(points[n - 1][0], points[n - 1][1]) != 0):
flag = 1
for i in range(0, n - 1):
start = [points[i][0], points[i][1]]
end = [points[i + 1][0], points[i + 1][1]]
if (computeCode(end[0], end[1]) == 0 and computeCode(start[0], start[1]) != 0):
count = count + 1
temp = []
temp.append(None)
temp.append(None)
final.append(temp)
count = count + 1
a = lineClip(start[0], start[1], end[0], end[1])
temp = []
temp.append(a[0][0])
temp.append(a[0][1])
final.append(temp)
count = count + 1
temp = []
temp.append(a[1][0])
temp.append(a[1][1])
final.append(temp)
count = count + 1
count = count - 1
count = count + 1
if (flag == 1):
temp = []
temp.append(None)
temp.append(None)
final.append(temp)
count = count + 1
startIndex = findNext(-1, count, final)
start = [final[startIndex][0], final[startIndex][1]]
flag = 0
back = [start[0], start[1]]
for i in range(startIndex + 1, count + 1):
if (flag == 1 and final[i][0] != None):
flag = 0
if (final[i - 1][0] == None):
back[0] = final[i][0]
back[1] = final[i][1]
continue
if (final[i][0] == None):
continue
elif (final[i + 1][0] == None):
draw.line((start[0], start[1], final[i][0], final[i][1]), fill=(255, 255, 255))
draw.line((final[i][0], final[i][1], back[0], back[1]), fill=(255, 255, 255))
if (i + 1 != count + 1):
index = findNext(i, count, final)
start[0] = final[index][0]
start[1] = final[index][1]
flag = 1
else:
draw.line((start[0], start[1], final[i][0], final[i][1]), fill=(255, 255, 255))
start[0] = final[i][0]
start[1] = final[i][1]
if (final[i - 1][0] == None):
back[0] = final[i][0]
back[1] = final[i][1]
im1.show()
im1.save('Before clipping.png')
im.show()
im.save('After clipping.png')
if __name__ == '__main__':
point = list()
# Input taken in code
# The algorithm begins with an input list of all vertices in the mentioned polygon
point = [[100, 290], [100, 210], [275, 230], [150, 250], [275, 270], [100, 290]]
orig = list()
for i in range(0, 10):
orig.append(point[i // 2][i % 2])
draw2.polygon(tuple(orig), outline=255)
time.sleep(2)
polygonClip(6, point)
Output

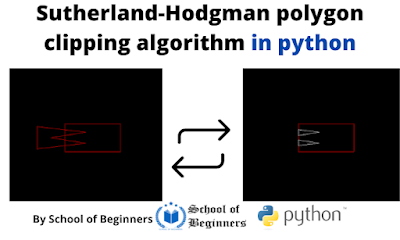

Before clipping
After clipping
Read more articles with python solutions in Computer graphics
